Level I Carbon Steel Forged Flanges Pressure Vessel Flange Customized
Product Details:
| Place of Origin: | Cangzhou,China |
| Brand Name: | ZX |
| Model Number: | Complete |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1-99999+ |
|---|---|
| Price: | Price negotiable,Telephone communication |
| Packaging Details: | Standard Export Package or as Per Your Requirement |
| Delivery Time: | Delivery on time |
| Payment Terms: | T/T |
| Supply Ability: | 1500 Ton/Month |
|
Detail Information |
|||
| Size: | Complete | Application: | Petroleum, Chemical, Machinery, Boiler,electric Power, Shipbuilding, Construction, Etc |
|---|---|---|---|
| Connection Mode: | Welding | Transport Package: | Wooden Box, Pallet Or According To Customer Requirements |
| Material: | Carbon Steel And Stainless Steel | Grade: | Level I |
| Origin: | Cangzhou,China | Standard: | See Product Description |
| Customize: | Yes | ||
| Highlight: | Pressure Vessel Flange Customized,Carbon Steel Forged FlangesCustomized,Level I Pressure Vessel Flange |
||
Product Description

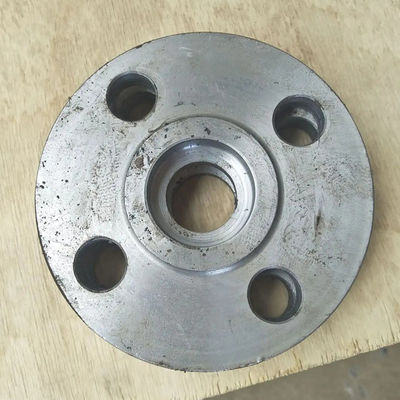

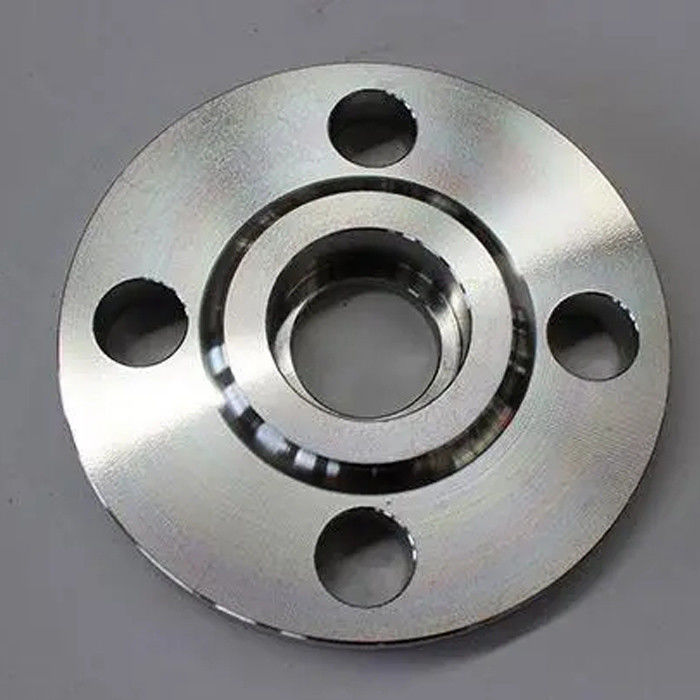

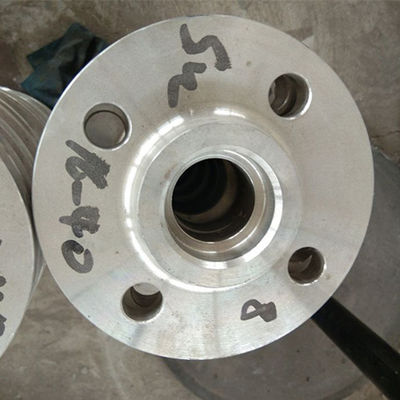

Socket Welding Flange, Material: Carbon Steel Pressure Vessel Flange
Socket welding flange refers to the pipe end inserted into the flange ring ladder, welded in the pipe end and the outer flange. There are two types with and without a neck. The rigidity of the flange with the neck tube is good, the welding deformation is small, the sealing is good, and can be used for the pressure of 1.0~10.0MPa. The Type B flange for the container is also a socket welding flange, which is used for occasions with high sealing requirements. During the design, the socket welding flange can be checked according to the integral flange.
Manufacturing standard:ANSI B16.5,HG20619,GB/T9117.1-GB/T9117.4,HG20597
Processing mode:High precision CNC lathe turning, ordinary lathe finishing, argon arc welding and other processing
Scope of application:Boiler pressure vessels, petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow food and other industries.
Technical parameter:
| Pressure | 150LBS-2500LBS |
| Standard | ASME B16.9 DIN2616 DIN2615 DIN2605 BS 1640-3-1968 BS 1640-4-1968 JIS B2313 GOST17375 GOST17378 GB/T |
| Material | Stainless Steel F304 304L 304H 316 316L 310 310S 321 321H 317 317L 347 347H 904L SS31803 2205 2507 |
| Forming type | Forged or as required |
| Main product | Seamless & Welded steel pipe flange |
| Sealing surface form |
RF,MFM,TG,RJ
|
